Description

Technical specifications
External dimensions:                 8800 x 3500 x 3200 mm (L x W x D)

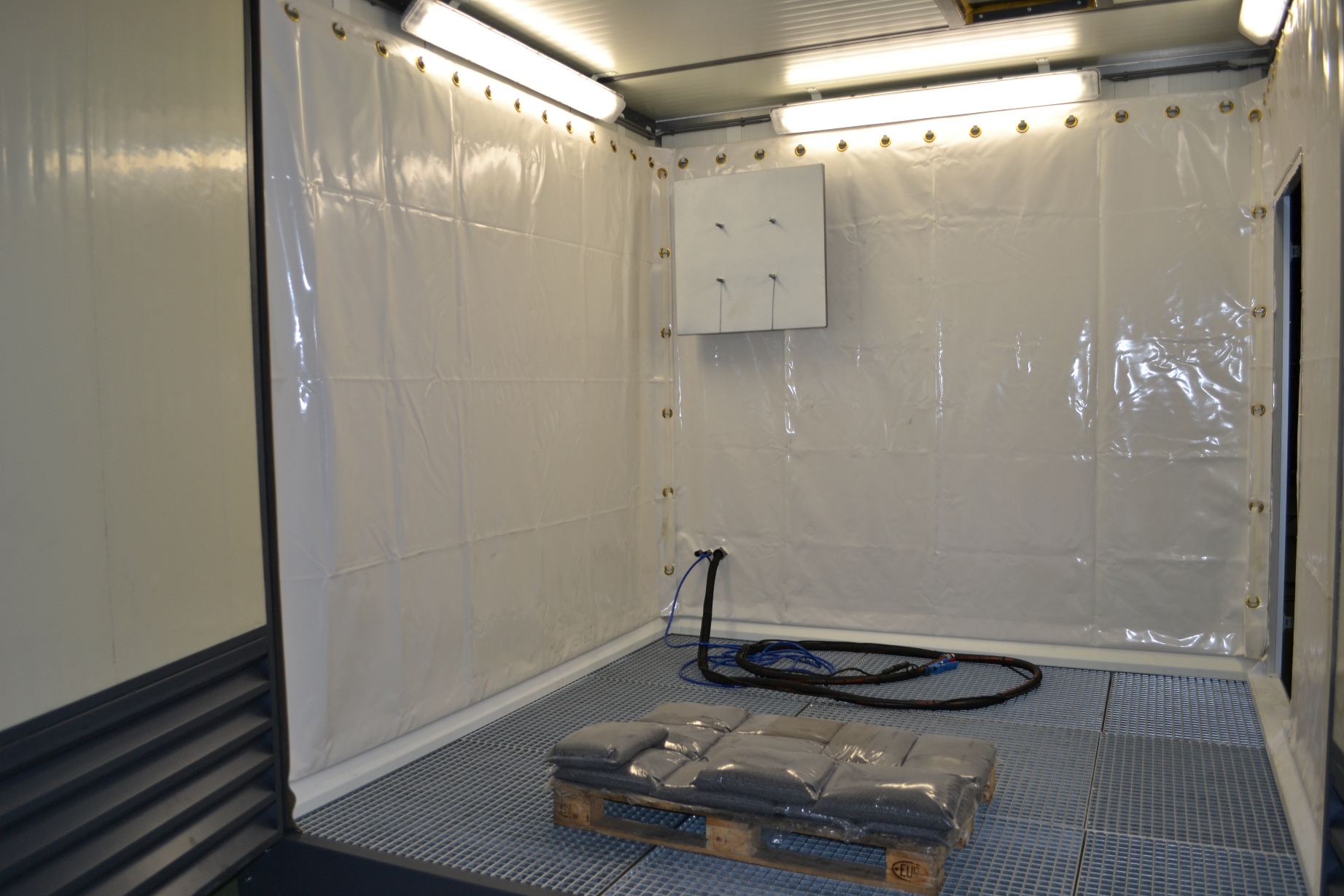

Blasting area:                                 5800 x 2900 x 2700 mm (L x W x D)
Door opening:                               2800 x 2700 mm (W x H)
Lighting:                                            LED lamps, 8 x 53 watts

Scraper floor
Number of scraper tracks:     3
Motor power:                                1.1 kW and 0.37 kW
Grid thickness (height):           50 mm
Maximum load grid:                  1000 kg on an area of ​​200 x 200 mm with a span of 1000 mm

Bucket elevator
Length:                                                approx. 3000 mm
Motor power:                                 1.1 kW

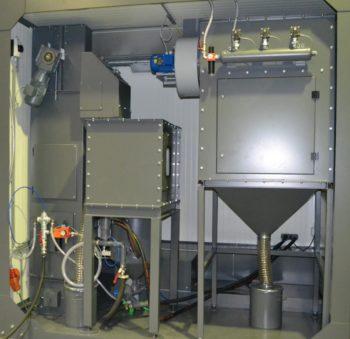

Filter system
Number of filter cartridges:   4 pieces
Filter area:                                        52 m² (13 m² per filter cartridge)
Filter medium:                                Polyester
Fan capacity:                                   4200 m³ / s at 1500 Pa
Motor power fan:                         2.2 kW
Compressed air cleaning:       Required pressure 5-6 bar. Consumption approx. 10 Nm³ / h

Pressure blast boiler
Volume:                                               100 liters
Maximum pressure:                     12 bar
Electrical connection:                 3 x 400 V, 50 Hz, earth and zero / 25A
Total power consumption:       6.5 kW
Color:                                                   RAL 7040/7014 light and dark gray
Complete weight:                         approx. 6000 kg

Options
– Additional HEPA H13 filter, with emission <0.1 mg / m³
– Automatic sieve
– Roof opening for crane loading – pneumatic opening, monitored by sensor
– Digital pressure setting via monitor and PLC control

Completely in accordance with the CE standard
